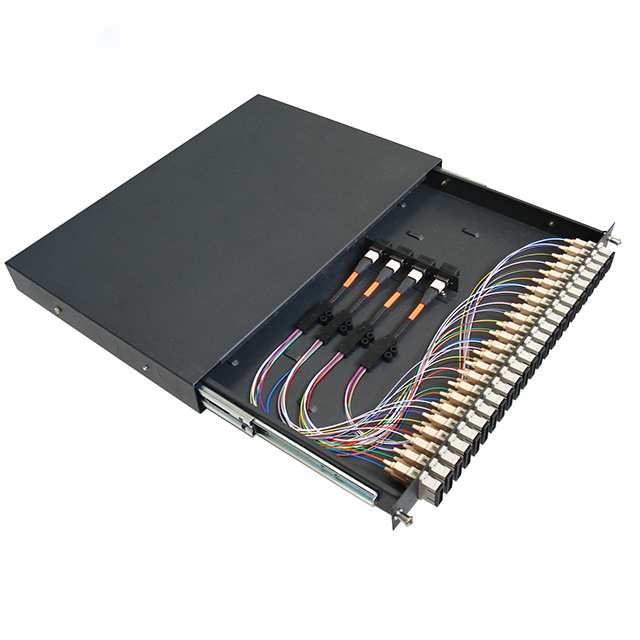

19" Outdoor 24 48 Port Corning Fiber SC MPO Preloaded Optic Patch Panel

Features

1. The shell is high intensified & insulated material, thus having excellent mechanic performance and

2. it is solid and durable

3. strength core and insulated shell, add with grounding lead

4. Wall mount available

5. Full accessories for convenient operations

Performance

1.excellent design

2.fiber lead grounding and perfect fix-up reliable

3.pigtail fix-up reliable and perfect protection

4.Apply to extensive field

5.convenient operations and maintenance

Specifications

1.Environment temperature -25~+45℃

2.Relative humidity ≤ 85%30

3.Atmosphere pressure70106KPa

4.Insulated Resistance ≥ 2×10MΩ / 500VDC

5.Intensity ≤ 15KV(DC) / 1minno spark-over and no flying arc

6.Fiber bending radium guaranteed more than 40mm ≥ 40mm

Application: It is applicable for straight-through connection and diverged connection in aerial layout , duct and direct buried. It can protect fiber connectors.

Patch panels can be loaded with adapters, splice cassettes and pigtails.

Order Information:

12, 24, 48, 96, 144, 288 port
available;

SC, FC, ST port
available;

OEM acceptable.
