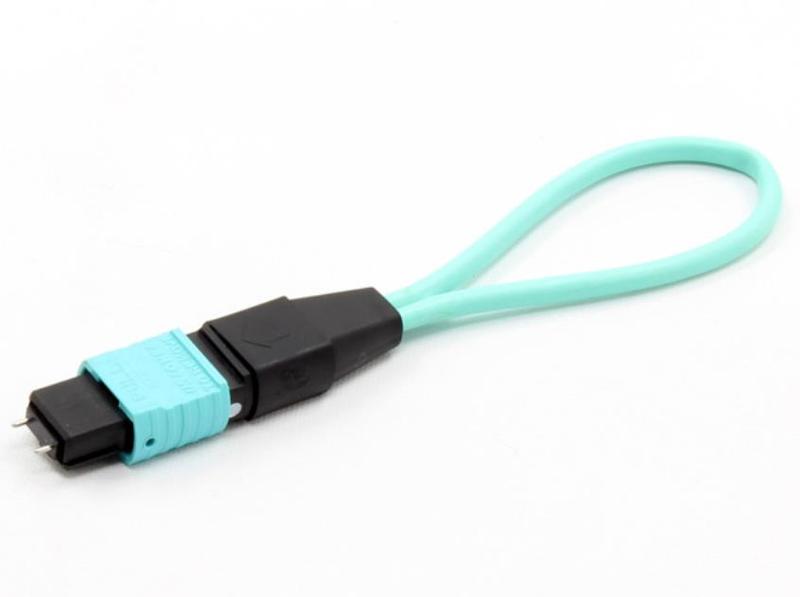

MPO/MTP Loopback Adaptor
Features
MTP/MPO connector, polarity available
Insertion loss type available in Standard, Elite / Low Loss
MTP/MPO connector type available in Male, Female
Customized loop length and polarity.ss
Improve and simplify fiber routing, decrease fiber management space
Standard Connector: MTP loopback connector adopts 8/12/24 fibers with different types of polarity.
Upgraded Design: The fiber loopback is slim and takes up less space than traditional fiber loopback.
Dustproof Function: Every loopback module is equipped with a dust cap, which is convenient to protect it from pollution.
Application in Data Center: Collocated with 40G or 100G MPO/MTP interface transceivers
Specification
Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
Polish | UPC | APC | UPC |
Insertion Loss | MPO / MTP : Low Loss≤1.2dB, Standard Loss≤0.70dB LC/SC : Standard Loss≤0.60dB | ||
Return Loss | ≥50dB | ≥60dB | ≥20dB |
3D(MPO/MTP) | Fiber Height : 1000~3500nm Radius Long: 500mm min | ||
Radius Short: 50mm min Max Fiber Differential < 400nm Max Fiber Adj Diff < 200nm Ferrule Height：7.95mm min MM Core Dip：<100nm | |||
3D(LC/SC/FC/ST) | Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） | ||
Repeat ability | 1000 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤0.20dB | ||
MPO / MTP Connector | Male / female | ||
Fiber Model(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
Fiber count(optional) | 2 ~ 24 Core | ||
Operating Temperature | -20 ~ +70 ℃ | ||
Storage Temperature | -40 ~ +85 ℃ |
