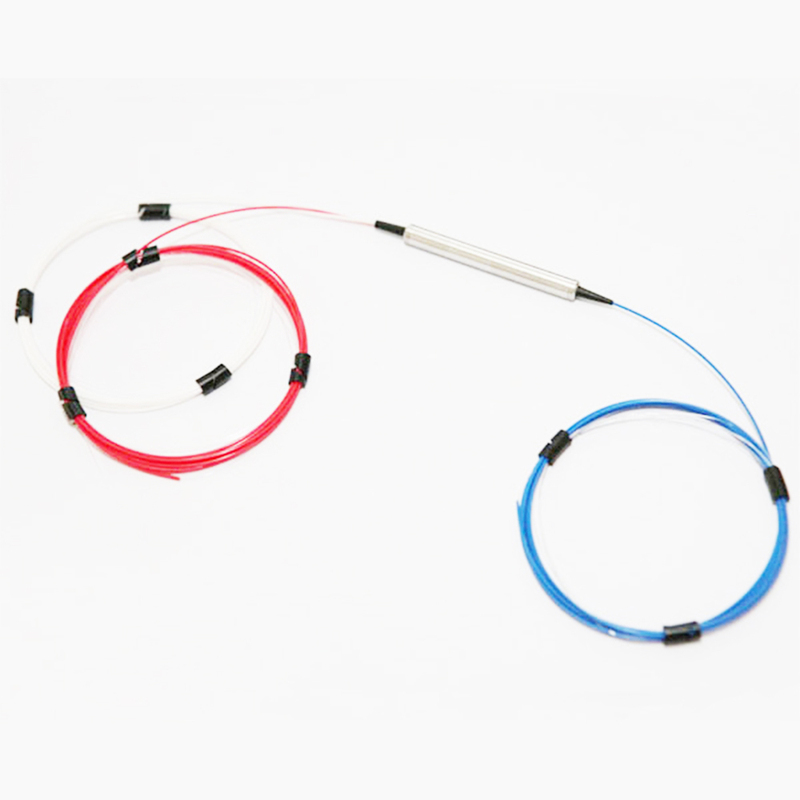

3-PORT POLARIZATION-DEPENDENT FREE-SPACE CIRCULATOR
(1310, 1480, 1550, 1590nm)
Specifications for Free Space Circulator
Parameter | Unit | Value | |
Wavelength | nm | 1310, or 1480, or 1550, or 1590 | |
Operating Range | nm | ±20 | |
Transmitting Direction | - | 1→2, 2→3 | |
Isolation (23℃) (2→1, or 3→2) | Typ. | dB | 40 |
Min | dB | 20 | |
Insertion Loss (23℃) (1→2, or 2→3) | Typ. | dB | 0.6 |
Insertion Loss (1→2, or 2→3) | Max | dB | 0.8 |
Return Loss | Min | dB | 50 |
Extinction Ratio | Min | dB | 20 |
Directivity (1→3, or 3→1) | Min | dB | 50 |
Optical Power Handling | Max | mW | 300 |
Package Dimension | mm | 7.0L x 7.0W x 5.0H | |
Operating Temperature | ℃ | -5~70 | |
Storage Temperature | ℃ | -40~85 | |
Ordering Information
FSC | Port | Type | Stage | Latching Type | Wavelength | Clear Aperture | Package Dimension |
FSC | 3=3-Port 4=4-Port | PD=Polarization Dependent | S=Single Stage D=Dual Stage | N=Non-latched type Garnet (With Magnet Ring) L=Latching Type Garnet (Without Magnet Ring) | 10=1064nm 13=1310nm 14=1480nm 15=1550nm 159=1590nm X=Others | 10=1.0mm 15=1.5mm 20=2.0mm X=Others | 01=7.0*7.0*5.0mm X=Others |
Model #
FSC-
Keyword
Free Space Circulator、fiber circulator、wavelength、1310nm、1480nm、1550nm、1590nm
Type
Free-Space Circulator
MOQ
50pcs
Connector
Customized
