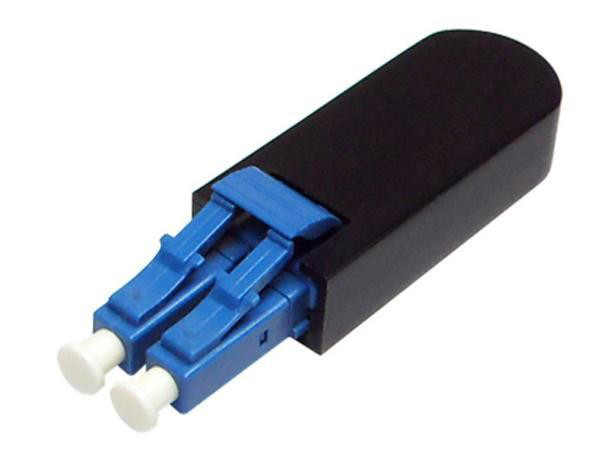

LC Loopback
Specifications
Fiber type | Single-mode 9/125 | Multimode 50/125 | Multimode 62.5/125 |
Fiber connector | LC/UPC | LC/UPC | LC/UPC |
Return loss | SM≥50dB | MM≥20dB | MM≥20dB |
Insertion loss | SM≤0.3dB | MM≤0.3dB | MM≤0.3dB |
Jacket material | PVC (Yellow) | PVC (Aqua) | PVC (Orange) |
Insert-pull test | 500times, IL<0.5dB | 500times, IL<0.5dB | 500times, IL<0.5dB |
Operation temperature | -20 to 70°C(-4 to 158°F) | -20 to 70°C(-4 to 158°F) | -20 to 70°C(-4 to 158°F) |
Dimensions | 53x14x12mm | 53x14x12mm | 53x14x12mm |
Features
100% functionally tested guaranteeing performance and integrity
Available in multiple off the shelf connector types
Connectors utilize a PC polish
Used in testing applications where 62.5/125 fiber is required
Duplex clips hold connectors together for ease and accuracy of insertion
Application
Telecom testing
Fiber labs
FTTX testing
R&D
Model #
LB-LC
Keyword
fiber loopback、LC connector、LC loopback
MOQ
50pcs
Connector
LC
Optical Mode
SM/MM
Size
53x14x12mm
