4U Wall Mount Equipment Cabinet, Mesh Door, Single 600x600mm
DESCRIPTION
Single Swing Out, Mesh Front Door, 600mm x 600mm

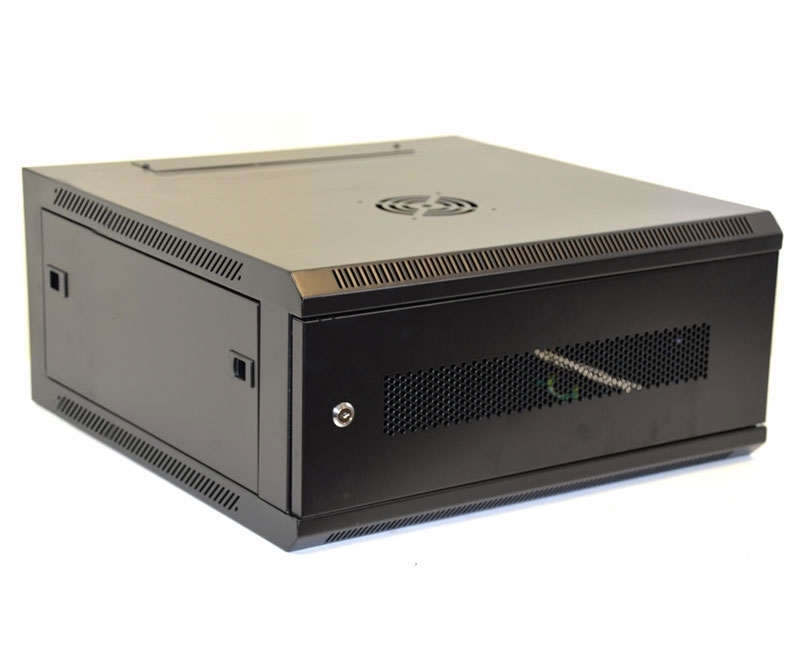

Wall Mount Enclosure Network Cabinet, 4U Single swing out, 600mm(W) X 600mm(D), Mesh front door
This Wall Mount Enclosure Cabinet is excellent for use with various types of electronic equipment and ideal for use where floor-space is limited, including classrooms, homes, small offices and telecom rooms. It is made of a highly durable, welded frame and has a turning angle on the front door of over 180 degrees. A cooling fan can be installed on the top cover of the cabinet to increase air circulation and increase cooling.
Product Features
Standard 19” Wall Mount Enclosures
Easy access removable side panels
Easy to install
Protection: IP20
Powder Coating
Predrilled Mounting Holes
RU marking on both the front and rear mounting rails
A hinge can be installed at either side
Earth grounding bolts
Complies with ANSI/EIA
SPECIFICATIONS
Rack Size | 4U |
Depth | 600mm |
Width | 600mm |
Door Type | Mesh Door |
Type | Single Door |
Color | Black |
Static Load Capacity | 60kg |
Customized Options:
Height (Unit) | Width | Depth | Front Door | Rear Door |
4U (7”/177mm) | 600mm | 450mm 600mm | 1: Tempered glazed with flat borders 2: Tempered glazed with arc vented borders 3: Mesh door | Yes No |
6U (10.5”/267mm) | ||||
9U (15.75”/400mm) | ||||
12U (21”/533mm) | ||||
15U (26.26”/667mm) | ||||
18U (31.5”/800mm) |
